Clayton · Double Wide · Buccaneer
The Roddy Clayton Mobile Home

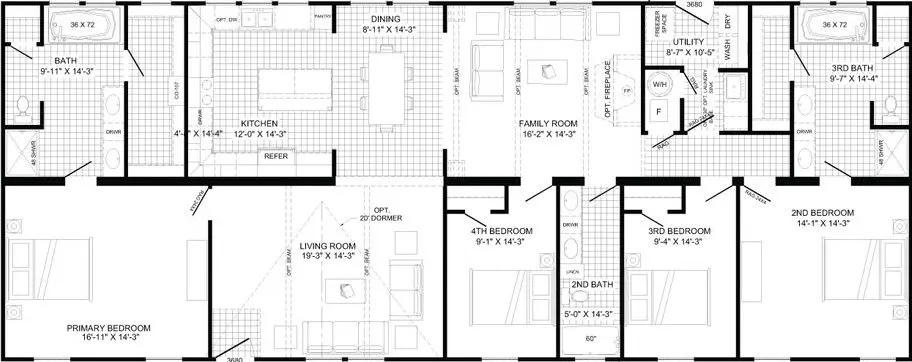

1 / 14The Roddy Mobile Home Floor Plan
Specifications and images are provided for comparison and may show options or features that are not included. Confirm current details before making a decision.
The Roddy Mobile Home Features
Bathroom
- 48″ X 72″ Fiberglass Shower w/seat & ceramic (Per Model)
- Fiberglass Tub (Per Model)
- Low Profile Square Ceramic Lav(s)
- Oil Rubbed Bronze Faucets
- Recessed Lights over lav(s) & in room
- Elongated Toilet
- Master Bath Counter Tops – Laminate
- Master Bath Counter Edging – Laminate
- Master Bath Backsplash – Laminate
- Purchased Mirror over Lav(s) (ship loose)
- Raised Lav height (36″ Nom.)
- Barn door entry (per model)
- GUEST BATH
- 60″ 1 Pc. Fiberglass Tub (Per Model)
- Low Profile Square Ceramic Lav(s)
- Oil Rubbed Bronze Faucets
- Recessed Lights over lav(s) & in room
- Elongated Toilet
- Guest Bath Counter Tops – Laminate
- Guest Bath Counter Edging – Laminate
- Guest Bath Backsplash – Laminate
- Purchased Mirror over Lav(s) (ship loose)
- Raised Lav height (36″ Nom.)
Construction
- STRUCTURAL
- Removable Hitches
- 2 x 6 Floor Joist 16″ O.C. 28′ Wides
- 2 x 8 Floor Joist 16″ O.C. 16’/32′ Wides
- 23/32″ T&G OSB Floors
- 8′-0″ Wall Height
- 2 x 4 Exterior Walls 16″ O.C.
- 2 x 4 Marriage Walls 24″ O.C.
- 2 x 4 Interior Walls 24″ O.C.
- Fixed Truss Rafters 24″ O.C.
- Nominal 3/12 Roof Pitch
- INSULATION
- R 22 – 13 – 38
Exterior
- EXTERIOR
- 7/16″ OSB Roof Decking
- 3 Tab Fiberglass Shingles
- Vented Overhangs
- Marriage Line Gasket – Multi Sections
- Exterior 7/16″ OSB Sheathing
- Vinyl Siding
- House Wrap
- Dormer Single section (Optional)
- Dormer Multi-section (per plan some models have multiple dormers)
- 6 1/4″ x 144″ Cemplank White Fascia
- Farmhouse Exterior w/metal (per plan)
- EXTERIOR DOORS & WINDOWS
- Front Door & Porch (per plan): 36 x 80 Residential 4 Lite Door W/Storm Door
- Rear Door: 9 Lite Residential Door W/Storm Door
- Single Section: White Vinyl Insulated Low-E Argon Gas Filled Windows 6/6
- Multi-Section: Bronze Vinyl Insulated Low- E Argon Gas Filled Windows 6/6
- Window Lineals – Front Door and Hitch End
Interior
- Flat Ceilings T/O
- 1/2″ High Strength Gypsum Ceiling Panel
- Stomped Ceiling Texture Finish
- Craftsman Style Interior Doors
- 24″ & 30″ Doors – Per Print
- Door Stops
- Lever handle Bronze door knobs
- 3″ Shaker Crown T/O
- 3″ Shaker Baseboard- T/O
- 3″ Shaker Window & Door Trim -T/O
- 1/2″ Finished Drywall – T/O
- FLOOR COVERING
- Vinyl Sheet Flooring – Kitchen ,Utility, Baths, Most Dining Areas
- Vinyl Sheet Flooring Entrance
- 25 Oz. Shaw Carpet – Living Room, Bedrooms, Most Halls
- Rebond Pad
Kitchen
- White Farmhouse Sink
- Spring Head Stainless Steel Faucet
- Name Brand Stainless Steel Appliances
- Farmhouse Galvanized Metal Range Hood W/Light
- Smooth Top Electric Range W/Glass Door
- Side by Side Refrigerator w/Water & Ice
- Dishwasher
- Recessed LED Lights (Kitchen & Dining per plan)
- Island Work Area (Per Model)
- Ventilated Shelving – Closets
- 42″ Overhead Cabinets
- Cabinet Over Refer
- Lined Overhead Cabinets W/Center Shelf
- Pantry (Per Model)
- European Style Concealed Hinges
- Side Mounted Roller Drawer Guides
- Oil Rubbed Bronze Knobs on Doors/drawers
- Drawers over doors
- 24″ Pot & Pan Drawers (per plan)
- Cabinet Stiles – Single Section: MDF Duracraft Multi-Section: Wood Raised Pnl
- Cabinet Doors – Single Section: MDF Duracraft Multi-Section: Wood Raised Pnl
- Floating Wood shelves (per plan)
- Kitchen Counter Tops – Laminate
- Kitchen Counter Edging – Laminate
- Kitchen Backsplash – Laminate
- Entertainment center w/metal accent/barn light (per model)
Mechanical
- UTILITY / PLUMBING / ELECTRICAL
- 200 Amp Total Electric
- ecobee® Smart Thermostat
- Electric Furnace
- Insulated metal ducts with Floor Registers
- Plumbed & Wired for Washer/Dryer
- 40 Gallon Heat Pump Water Heater
- Wire Shelf in Utility Room
- PEX Water Supply W/Whole House Shut-off
- PVC Drain Lines
- Exterior Faucet (1) Rear of Home
- Exterior Recept (1) Rear of home and (1) on any porch
- Black Barn Style Hoop Light at Front & Porch Entry Door
- Black Exterior Light at Rear Entry Door
- 11″ 2 bulb fixture – Bedrooms
- Recessed LED Lights-Hall, Utilty, Walk in Closets
- Ceiling Fan 52″ 5 blade – Living Room
