May Be Available to OrderClayton Buccaneer · Multi Section · Model 73ADM28563HH

Explore This Clayton Double Wide in Alabama

The Jefferson — Buccaneer Clayton Mobile Home

Get Prequalified

The Jefferson — Buccaneer is built by Buccaneer Homes, in Hamilton, AL. It is an approximately 1,493-square-foot double wide with 3 bedrooms and 2 bathrooms. Its floor plan features a defined dining area connected to the kitchen and living room and an island for work and seating with pantry storage nearby.

Bedrooms
3
Bathrooms
2
Square feet
1,493
Dimensions
28′ × 56′

Tour It Room by Room

Tour the Jefferson — Buccaneer in 3D.

Move through the 28′ × 56′ version of the Jefferson — Buccaneer before you visit it in person. You can look around each room, follow the connected living spaces, and see how the floor plan feels from inside the home.

Preview of the Jefferson — Buccaneer Matterport 3D walkthrough

This manufacturer-provided tour represents the 28′ × 56′ version of the Jefferson — Buccaneer and may show factory- or retailer-selected features. Confirm the exact configuration, finishes, options, and availability with Nicholas. View the model-specific manufactured-home catalog record.

See the Full Layout

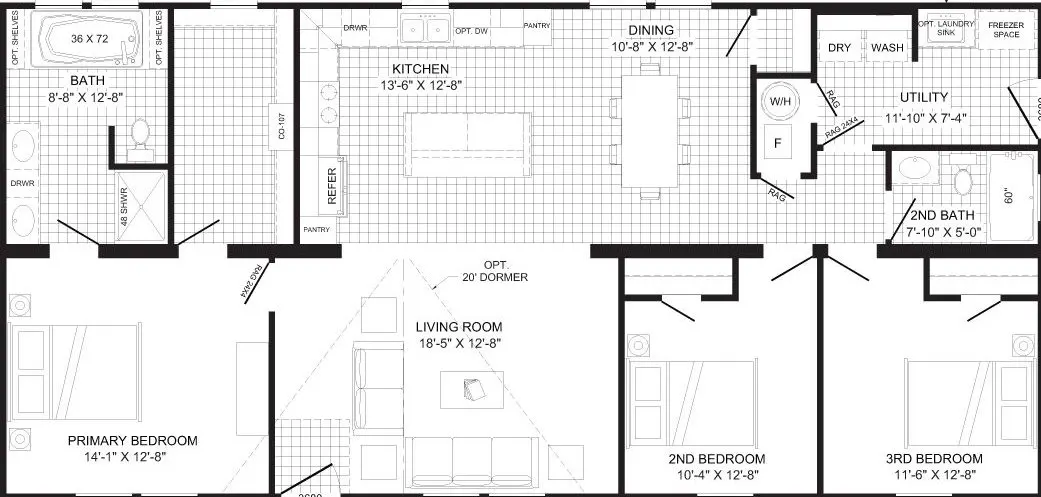

The Jefferson — Buccaneer Floor Plan

Follow a defined dining area connected to the kitchen and living room, then see how an island for work and seating with pantry storage nearby and a utility area with a labeled freezer location complete the 28′ × 56′ plan.

Download Plan Download Brochure

Factory Information

Multi Section Standards, Options, and Decor

Clayton Buccaneer is the current production reference recorded for this floor plan. We will go over all of these one at a time to make sure your home has exactly what you want.

01

Factory Reference

Manufacturer Standard Features

Structural
  • Removable Hitches
  • 2 x 6 Floor Joist 16″ O.C. 28′ Wides
  • 2 x 8 Floor Joist 16″ O.C. 16’/32′ Wides
  • 23/32″ T&G OSB Floors
  • 8′-0″ Wall Height
  • 2 x 4 Exterior Walls 16″ O.C.
  • 2 x 4 Marriage Walls 24″ O.C.
  • 2 x 4 Interior Walls 24″ O.C.
  • Fixed Truss Rafters 24″ O.C.
  • Nominal 3/12 Roof Pitch
Insulation
  • R 22 – 13 – 38
Exterior
  • 7/16″ OSB Roof Decking
  • 3 Tab Fiberglass Shingles
  • Vented Overhangs
  • Marriage Line Gasket – Multi Sections
  • Exterior 7/16″ OSB Sheathing
  • Vinyl Siding
  • House Wrap
  • Dormer Multi-section (per plan some models have multiple dormers)
  • 6 1/4″ x 144″ Cemplank White Fascia
  • Farmhouse Exterior w/metal (per plan)
Exterior Doors & Windows
  • Front Door & Porch (per plan): 36 x 80 Residential 4 Lite Door W/Storm Door
  • Rear Door: 9 Lite Residential Door W/Storm Door
  • Single Section: White Vinyl Insulated Low-E Argon Gas Filled Windows 6/6
  • Multi-Section: Bronze Vinyl Insulated Low- E Argon Gas Filled Windows 6/6
  • Window Lineals – Front Door and Hitch End
Interior
  • Flat Ceilings T/O
  • 1/2″ High Strength Gypsum Ceiling Panel
  • Stomped Ceiling Texture Finish
  • Craftsman Style Interior Doors
  • 24″ & 30″ Doors – Per Print
  • Door Stops
  • Lever handle Bronze door knobs
  • 3″ Shaker Crown T/O
  • 3″ Shaker Baseboard- T/O
  • 3″ Shaker Window & Door Trim -T/O
  • 1/2″ Finished Drywall – T/O
Floor Covering
  • Vinyl Sheet Flooring – Kitchen ,Utility, Baths, Most Dining Areas
  • Vinyl Sheet Flooring Entrance
  • 25 Oz. Shaw Carpet – Living Room, Bedrooms, Most Halls
  • Rebond Pad
Kitchen
  • White Farmhouse Sink
  • Spring Head Stainless Steel Faucet
  • Name Brand Stainless Steel Appliances
  • Farmhouse Galvanized Metal Range Hood W/Light
  • Smooth Top Electric Range W/Glass Door
  • Side by Side Refrigerator w/Water & Ice
  • Dishwasher
  • Recessed LED Lights (Kitchen & Dining per plan)
  • Island Work Area (Per Model)
Cabinetry
  • Ventilated Shelving – Closets
  • 42″ Overhead Cabinets
  • Cabinet Over Refer
  • Lined Overhead Cabinets W/Center Shelf
  • Pantry (Per Model)
  • European Style Concealed Hinges
  • Side Mounted Roller Drawer Guides
  • Oil Rubbed Bronze Knobs on Doors/drawers
  • Drawers over doors
  • 24″ Pot & Pan Drawers (per plan)
  • Cabinet Stiles – Single Section: MDF Duracraft Multi-Section: Wood Raised Pnl
  • Cabinet Doors – Single Section: MDF Duracraft Multi-Section: Wood Raised Pnl
  • Floating Wood shelves (per plan)
  • Kitchen Counter Tops – Laminate
  • Kitchen Counter Edging – Laminate
  • Kitchen Backsplash – Laminate
  • Entertainment center w/metal accent/barn light (per model)
Utility / Plumbing / Electrical
  • 200 Amp Total Electric
  • ecobee® Smart Thermostat
  • Electric Furnace
  • Insulated metal ducts with Floor Registers
  • Plumbed & Wired for Washer/Dryer
  • 40 Gallon Heat Pump Water Heater
  • Wire Shelf in Utility Room
  • PEX Water Supply W/Whole House Shut-off
  • PVC Drain Lines
  • Exterior Faucet (1) Rear of Home
  • Exterior Recept (1) Rear of home and (1) on any porch
  • Black Barn Style Hoop Light at Front & Porch Entry Door
  • Black Exterior Light at Rear Entry Door
  • 11″ 2 bulb fixture – Bedrooms
  • Recessed LED Lights-Hall, Utilty, Walk in Closets
  • Ceiling Fan 52″ 5 blade – Living Room
Primary Bath
  • 48″ X 72″ Fiberglass Shower w/seat & ceramic (Per Model)
  • Fiberglass Tub (Per Model)
  • Low Profile Square Ceramic Lav(s)
  • Oil Rubbed Bronze Faucets
  • Recessed Lights over lav(s) & in room
  • Elongated Toilet
  • Master Bath Counter Tops – Laminate
  • Master Bath Counter Edging – Laminate
  • Master Bath Backsplash – Laminate
  • Purchased Mirror over Lav(s) (ship loose)
  • Raised Lav height (36″ Nom.)
  • Barn door entry (per model)
Guest Bath
  • 60″ 1 Pc. Fiberglass Tub (Per Model)
  • Guest Bath Counter Tops – Laminate
  • Guest Bath Counter Edging – Laminate
  • Guest Bath Backsplash – Laminate
02

Verify for This Floor Plan

Available Manufacturer Options

Buccaneer offers many ways to customize your home. Just ask, and we’ll see what’s possible.

03

Factory Design Selections

Manufacturer Decor Options

Choose a group, then swipe or use the arrows inside each category. Select any picture to open that category as a full-screen gallery.

These are factory-published choices for this product line or production facility—not a promise that every selection fits every floor plan. Availability, compatibility, upgrade status, and pricing can change by model, state, and written order.

Factory references last reviewed August 27, 2026. Buccaneer Product Standards · Buccaneer Design Center
